NYBY Cable

Tags : NYBY Cables,PVC insulated cables,LV STA armored cable

Summary: LV NYBY power cable is a PVC insulated and sheathed power cable armored with galvanised steel tape for low voltage power applications. The NYBY cable specifies a maximum of 70℃. Rated 0.6/1kV and manufactured in accordance with IEC 60502-1 and DIN VDE 0276-603.

Email:worldmarket@zhenglancable.com

Send E-mail >Inquiry

Description

Specifications

Description

Zhenglan Cable Technology Co., Ltd

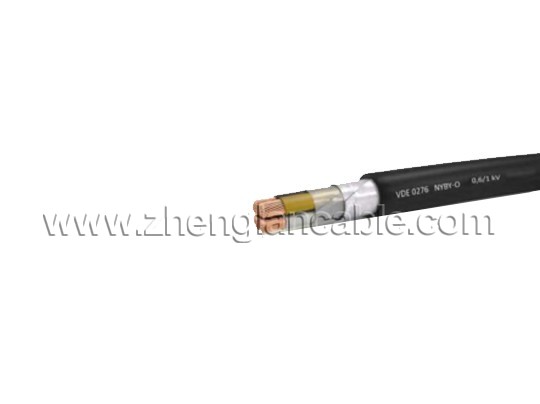

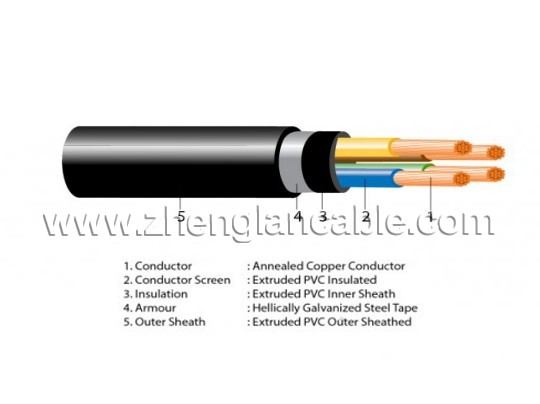

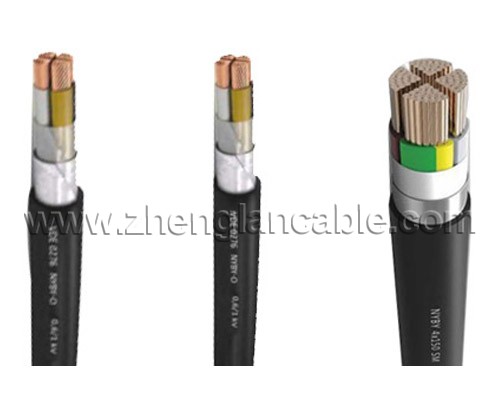

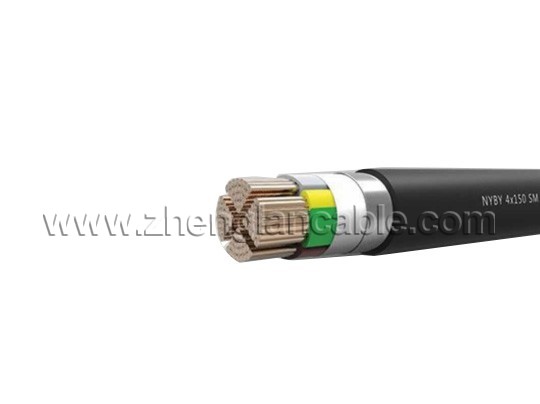

LV NYBY power cable Construction:

Conductor:

Class 1 solid or Class 2 stranded copper conductor

Insulation: Polyvinyl chloride (PVC)

Armour: Double layer of galvanised steel tape (GSTA)

Outer sheath: Polyvinyl chloride (PVC)

The choice of a NYBY cable or N2XBY cable will be dependent on the precise application and installation environment.

Standards:

HRN HD 603 S1
IEC 60502-1
DIN VDE 0276 part 603

LV NYBY power cable Application:LV NYBY power cable is a PVC insulated and sheathed power cable armored with galvanised steel tape for low voltage power applications. The NYBY cable specifies a maximum of +70oC. Rated 0.6/1kV and manufactured in accordance with IEC 60502-1 and DIN VDE 0276-603. They are commonly used across European power distribution networks.|
The double layer of galvanised steel tape offers the cable a degree of mechanical protection but minimises the additional weight and overall diameter of the cable compared to the armour of flat or round steel wires. As such, the NYBY cable is suitable for static application installations in both internal and external dry and damp environments, including being buried with additional protection. The NYBY cable is available with green/yellow earth conductor in the multicore variants of cores and above, with the option of a reduced size earth in the 3 core cable.
We also manufacture XLPE insulated N2XBY cable which has a maximum operating temperature of 90oC.

Specifications

NYBY cable parameters

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF OUTER SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm²	mm	mm	mm	mm	kg/km
2	1.5	1.37	0.8	1.24	12	273
2	2.5	1.76	0.8	1.24	13	319
2	4	2.22	1.0	1.24	15	415
2	6	2.72	1.0	1.24	15	469
2	10	3.85	1.0	1.24	18	639
2	16	4.8	1.0	1.24	20	830
2	25	5.85	1.2	1.24	23	1154
2	35	6.9	1.2	1.32	25	1481
2	50	8.1	1.4	1.4	29	1923
2	70	9.7	1.4	1.48	33	2747
3	10	3.85	1.0	1.24	19	742
3	16	4.8	1.0	1.24	21	985
3	25	5.85	1.2	1.24	24	1403
3	35	6.9	1.2	1.32	27	1818
3	50	8.1	1.4	1.4	31	2381
3	70	9.7	1.4	1.48	34	3179
3	95	11.4	1.6	1.64	39	4249
3	120	12.65	1.6	1.72	42	5128
3	150	14.4	1.8	1.88	48	6384
3	185	15.75	2.0	2.04	52	7806
3	240	18.2	2.2	2.2	59	10156
3	16+10	4.8	1.0	1.24	23	1280
3	25+16	5.85	1.2	1.24	26	1777
3	35+16	6.9	1.2	1.32	29	2167
3	50+25	8.1	1.4	1.4	33	2853
3	70+35	9.7	1.4	1.56	37	3770
3	95+50	11.4	1.6	1.64	42	4975
3	120+70	12.65	1.6	1.8	46	6131
3	150+70	14.4	1.8	1.88	50	7288
3	185+95	15.75	2.0	2.04	55	8960
3	240+120	18.2	2.2	2.2	61	11377
4	1.5	1.5	0.8	1.24	14	338
4	2.5	1.76	0.8	1.24	15	391
4	4	2.21	1.0	1.24	17	531
4	6	2.72	1.0	1.24	15	539
4	10	3.85	1.0	1.24	21	1016
4	16	4.8	1.0	1.24	23	1215
4	25	5.85	1.2	1.32	27	1900
4	35	6.9	1.2	1.4	30	2435
4	50	8.1	1.4	1.48	34	3173
4	70	9.7	1.4	1.56	38	4205
4	95	11.4	1.6	1.72	44	5594
4	120	12.65	1.6	1.88	47	6761
4	150	14.4	1.8	1.96	53	8335
4	185	15.75	2.0	2.12	58	10146
4	240	18.2	2.2	2.36	66	13204
5	1.5	1.37	0.8	1.24	14	372
5	2.5	1.76	0.8	1.24	16	453
5	4	2.21	1.0	1.24	18	620
5	6	2.72	1.0	1.24	19	756
5	10	3.85	1.0	1.24	23	1123
5	16	4.8	1.0	1.24	25	1559
5	25	5.85	1.2	1.32	30	2241
5	35	6.9	1.2	1.4	33	2883
5	50	8.1	1.4	1.48	37	3804
