Multicore Sheathed Cable--BVV

Tags : PVC Sheathed Cable,Fixed-sheathed Cable,BVV Wire

Summary: PVC Insulated and Sheathed Non-Flexible Round Cable is suitable for power units and household appliances with AC voltages of 300/500V and below. It can also be used for surface mounted wires.

Description

Zhenglan Cable Technology Co., Ltd

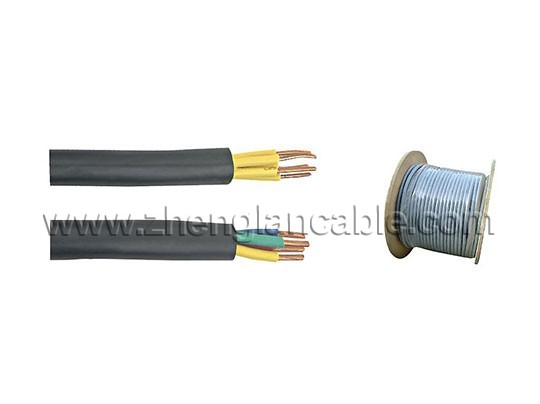

Multicore Sheathed Cable--BVV Construction:

Core number: 2core, 3 core, 4 core or 5 core

Conductor:

Class 1 solid plain copper

Class 2 stranded plain copper

Insulation: PVC

Outer sheath: PVC

Electrical characteristics:

Rated voltage: 450/750V

Conductor working temeprature max. +70°C (under normal condition

Minimum bending radius:

For cable with diameter below 25mm, allowed bending radius should not be less than 4D;

For cable with diameter above and including 25mm, allowed bending radius should not be less than 6D;

Operating temperatures: Mounting -5° - +40°C Operating -30° - +70°C

Core marking

2-cores: Brown, Blue

3-cores: Brown, Yellow-green, Blue

4-cores: Brwon, Black, Grey, Yellow-green

5-cores: Brown, Black, Grey, Yellow-green, Blue

Standard: 60227 IEC10 or GB/T5023.4-2008

PVC Insulated & Sheathed Non-Flexible Round Cable Application: Fixed lnstallation in dry or damp areas for domestic and light industrial wiring.

Packing: 100m per roll(per coil or plastic reel, as your request)

Specifications

PVC Insulated & Sheathed Non-Flexible Round Cable Data sheet

Construction of Cable

Construction of Conductor

Insulation Thickness

Sheath Thickness

Overall Dia

Min.Insulation Resistance at 70℃

Total Weight

mm²

No. X mm

mm

mm

mm

mΩ/km

Kg/km

2x1.5

1x1.36

0.6

1.4

8.8

0.010

117

2x2.5

1x1.78

0.7

1.4

10.0

0.009

160

2x4

1x2.26

0.8

1.4

11.4

0.009

227

2x6

1x2.7

0.8

1.4

12.2

0.007

274

2x10

1x3.5

1.0

1.6

15.6

0.007

450

2x16

7x1.75

1.0

1.6

18.4

0.005

680

2x25

7x2.20

1.2

1.6

21.6

0.005

1010

2x35

7x2.60

1.2

1.8

25.0

0.004

1388

3x1.5

1x1.38

0.6

1.4

9.1

0.010

133

3x2.5

1x1.78

0.7

1.4

10.2

0.009

189

3x4

1x2.26

0.8

1.4

11.8

0.009

270

3x6

1x2.70

0.8

1.6

13.5

0.007

258

3x10

1x3.5

1.0

1.6

16.5

0.007

568

3x16

7x1.75

1.0

1.6

19.5

0.005

837

3x25

7x2.20

1.2

1.8

24.0

0.005

1280

3x35

7x2.60

1.2

1.8

26.7

0.004

1670

4x1.5

1x1.38

0.6

1.4

9.8

0.010

159

4x2.5

1x1.78

0.7

1.4

11.4

0.009

233

4x4

1x2.26

0.8

1.6

13.5

0.009

338

4x6

1x2.70

0.8

1.6

14.4

0.007

423

4x10

1x3.5

1.0

1.6

17.3

0.007

646

4x16

7x1.75

1.0

1.6

21.8

0.005

1030

4x25

7x2.20

1.2

1.8

26.0

0.005

1590

4x35

7x2.60

1.2

1.8

29.3

0.004

2080

5x1.5

1x1.38

0.6

1.4

10.7

0.010

186

5x2.5

1x1.78

0.7

1.4

12.2

0.009

270

5x4

1x2.26

0.8

1.6

14.6

0.009

409

5x6

1x2.70

0.8

1.6

15.7

0.007

509

5x10

1x3.5

1.0

1.6

19.0

0.007

815

5x16

7x1.75

1.0

1.8

23.8

0.005

1285

5x25

7x2.20

1.2

1.8

28.7

0.005

1950

5x35

7x2.60

1.2

1.8

32.1

0.004

2610

Remarks:  Flame retardant, fire resistance(adopt mica tape), low smoking and Halogen free, or other property are available.

ZR cable(flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.

There are 3 grades of fire prevention available which are

Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.

Grade B Except the insulation material, all other materials are flame retardant.

Grade C Only the sheath material is flame retardant

NH cable(fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.

LSZH、LSOH、LS0H、LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.

Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.
